ZEAL SA12V7 12V 7.0Ah F1 Valve Regulated Lead-Acid Battery ActivFire Certified

ZEAL Fire And SecuritySeries Maintenance free(SMF)

Specifications:

• Model: SA12V7

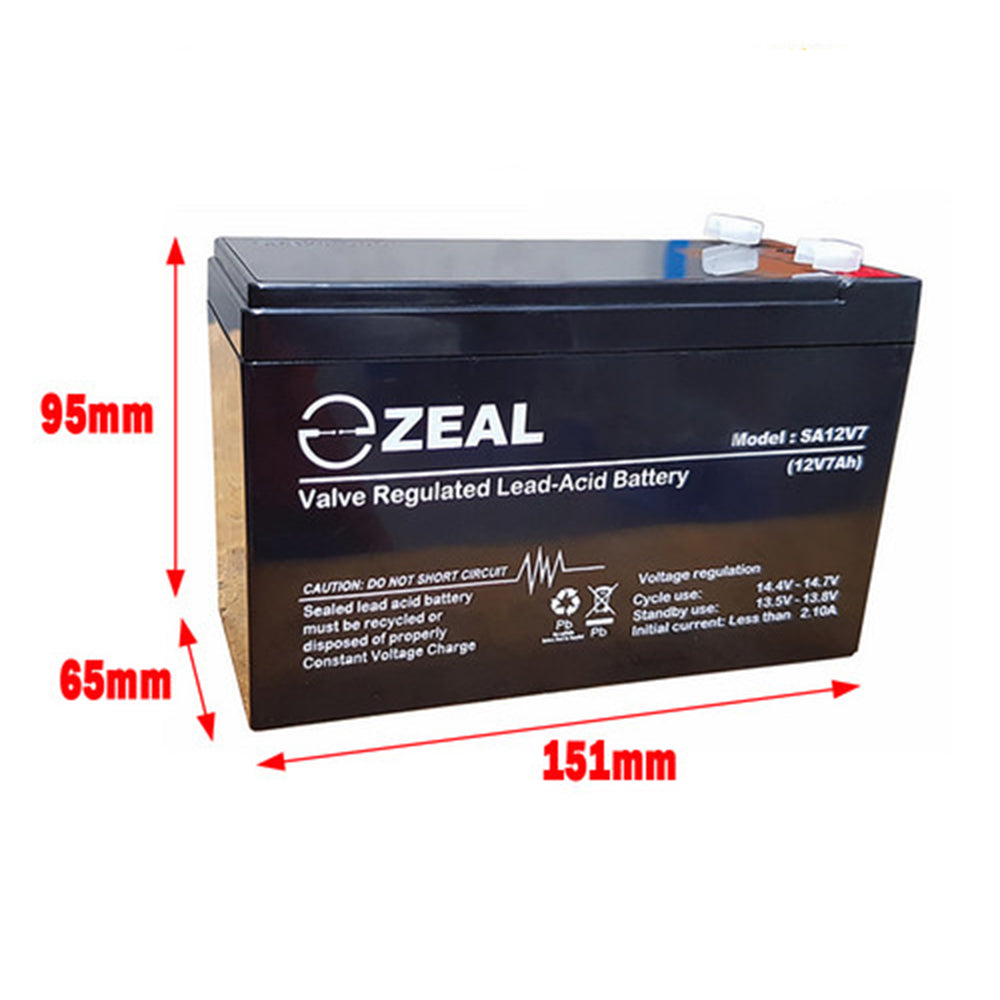

• Dimensions L*W*H (mm): 151*65*95
• Total Height (with terminal) 100±1mm

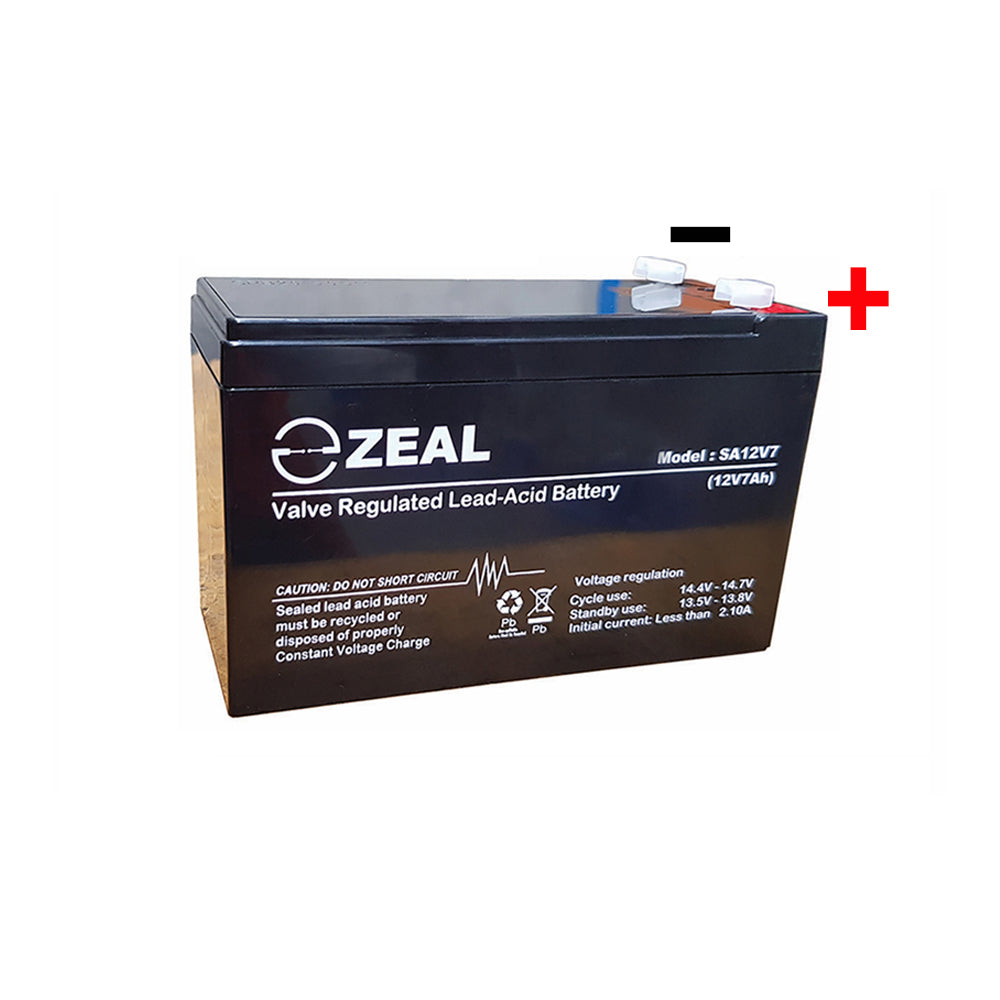

• Terminal Type: F1
• Nominal Voltage: 12 volts
• Nominal Capacity 20HR:7.0AH
• Rated Capacity:
  7.00 AH/0.350A (20hr, 1.80V/cell, 25°C/77°F)
  6.53 AH/0.653A (10hr, 1.80V/cell, 25°C/77°F)
  6.00 AH/1.20A (5hr, 1.75V/cell, 25°C/77°F)
  5.37 AH/1.79A (3hr, 1.75V/cell, 25°C/77°F)
  4.55 AH/4.55A (1hr, 1.60V/cell, 25°C/77°F)
• Max. Discharge Current:105A (5s)
• Internal Resistance:Approx 23mΩ
• Operating Temp.Range:
  Discharge : -15 - 50°C (5 - 122°F)
  Charge : 0 - 40°C (32 - 104°F)
  Storage : -15 - 40°C (5 - 104°F)
• Nominal Operating Temp.Range:25±3°C (77±5°F)
• Cycle Use:Initial Charging Current less than 2.1A. Voltage 14.4V - 14.7V at 25°C (77°F) Temp.Coefficient -30mV/°C
• Standby Use:No limit on Initial Charging Current Voltage 13.5V - 13.8V at 25°C (77°F) Temp.Coefficient -20 mV/°C
• Capacity affected by Temperature:
  40°C (104°F) 103%
  25°C (77°F) 100%
  0°C (32°F) 86%
• Self Discharge:Zeal AGM series batteries may be stored for up to 6 months at 25°C (77°F) and then a freshening charge is required.For higher temperatures the time interval will be shorter.
• Batteries have a 12 months warranty
• Please note: If the battery is not in use, please recharge it every two months to maintain its voltage.

Features And Benefits:

• Absorbent Glass Mat (AGM) technology for efficient gas recombination and maintenance-free
• Essential sizes designed specifically for the fire and security market
• ActivFire Certified
• 5-10 years float life
• Low self-discharge
• CCA rated sizes

Applications:

• All-purpose
• Standby Applications
• Recreation Vehicles
• Uninterruptible Power Supply (UPS)
• Electric Power System (EPS)
• Fire & Security
• Generators
• Medical Equipment

Package List:

• 1 X Battery
