Tamiya 1:10 Scale TRF104 Chassis Kit RC 2WD Racing Car Assembly Kit
Tamiya 1:10 Scale TRF104 Chassis Kit RC 2WD Racing Car Assembly Kit
Sale price$786.99
Regular price$865.69 (/)
Description

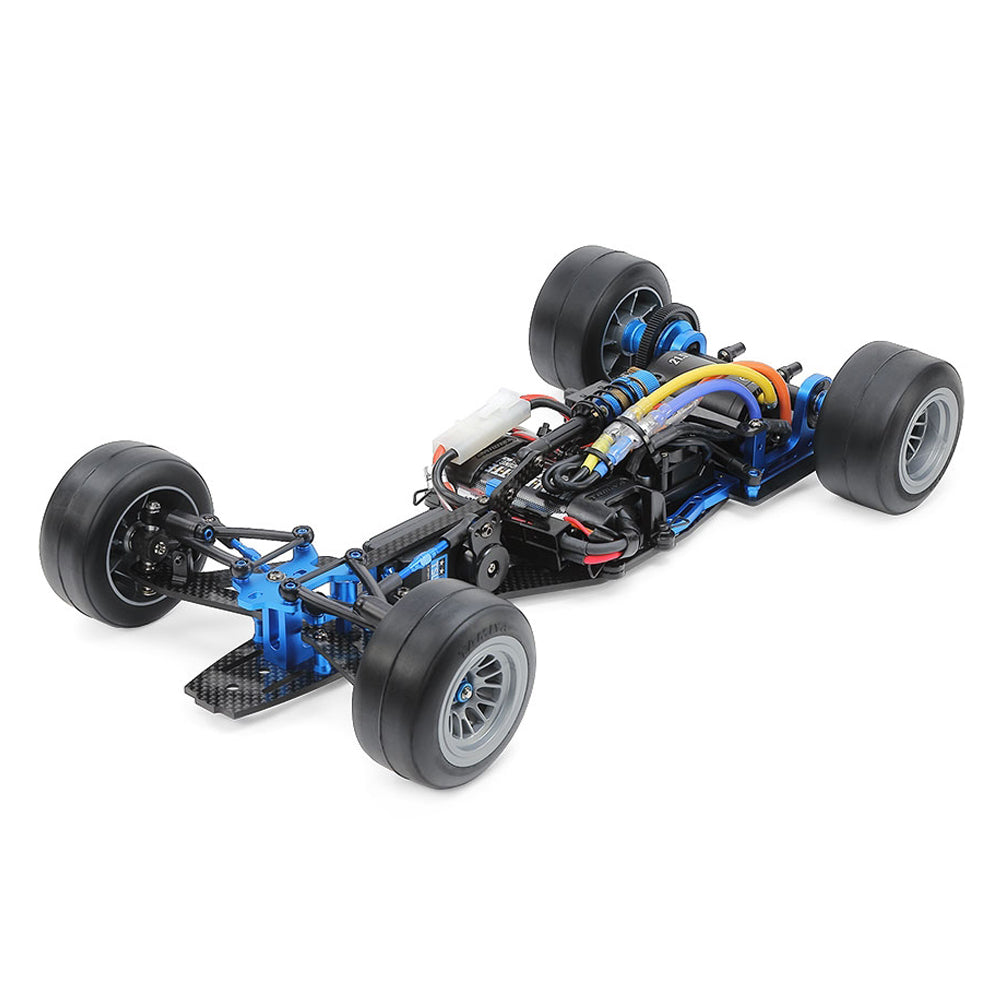

Tamiya 1:10 Scale TRF104 Chassis Model Kit
Description:
- Brand: Tamiya
- Color: As picture shown
- 1:10 scale plastic model assembly kit
- Features plastic upper A-arms
- Camber angle is adjustable freely from +1 to -3 degrees (approximate) using a 2mm hex wrench
- Caster angle is also adjustable at 6, 9 and 12 degrees (approximate)
- The pitching is controlled by FRP suspension plate flex and a TRF damper
- Suspension link and T-bar setup are not used. Instead, ball connectors are equipped at motor mount front and rear, and suspension roll is placed at the center of the chassis
- The model centering is controlled by roll springs under the rear shaft, and friction grease on roll dampers at motor mount allow adjustment of roll speed
- Formula chassis can lose rear grip because of unbalanced weight. To prevent this problem, battery pack, receiver and servo are positioned at the center of chassis to ensure better rear grip
- 2.5mm thick carbon fiber front lower suspension arms have two attachment positions (3mm adjustment for each side) to adjust its width and attach wheels with different offsets
- Required to complete: 2-channel radio, steering servo, ESC, 540-size motor, 7.2-7.4volt battery with compatible charger, F-1 body parts set, F1 wheels & tires, and Tamiya PS paint
Package List:
- 1 x 1:10 Scale Model Kit
Note:
- Despite every effort to provide accurate images of each product's colour, actual colours may vary slightly, due to different device screen settings, the lighting in the installation location, slight differences in product finishes over time and other factors. We will not accept responsibility for any colour differences that are not factory faults
- International customers: please be aware that your country's customs may charge you an import duty or tax on this item upon delivery. Please refer to your relevant authorities for more information
Additional Information
| SKU | TH00013095 |
| Barcode | 4950344423897 |
| Brand | Tamiya |
| Shipping Dimensions | 25.0W / 43.0L / 18.0H (cm) |
| Weight | 1.247 kg |
| Colour | As picture shown |
