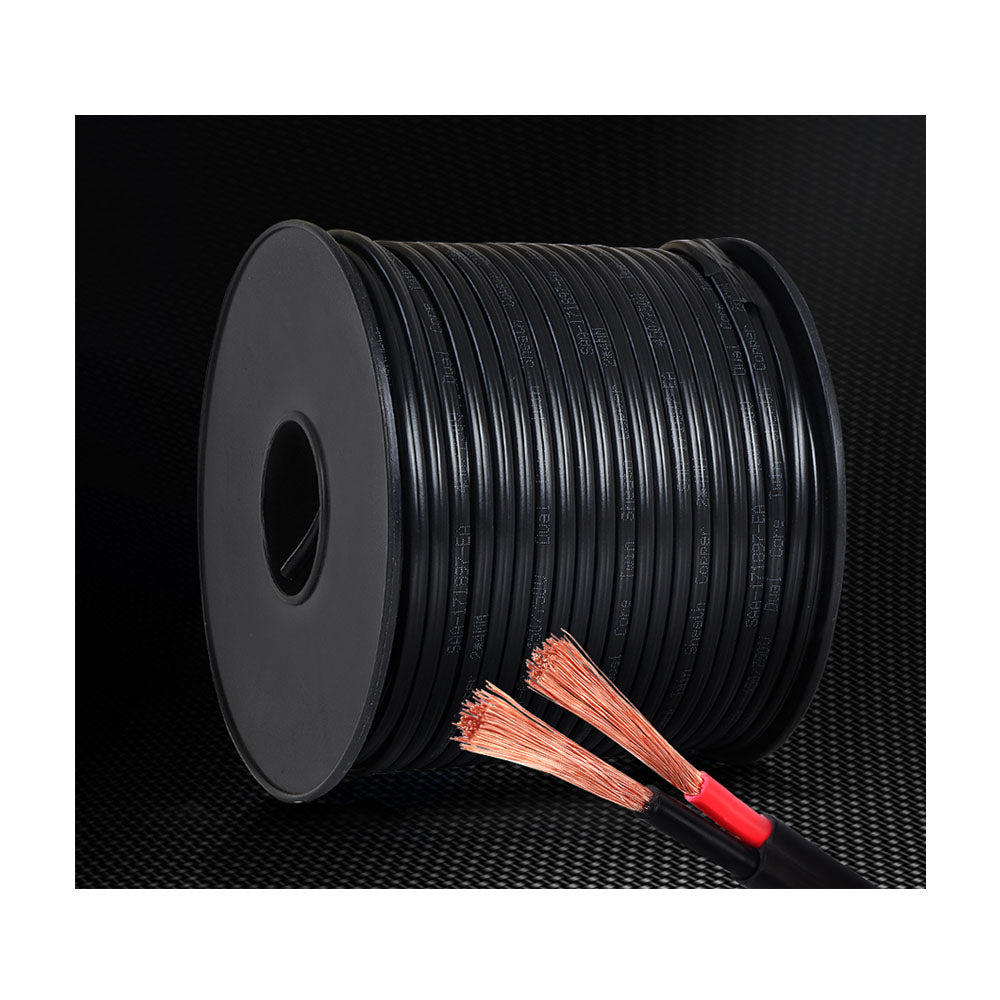

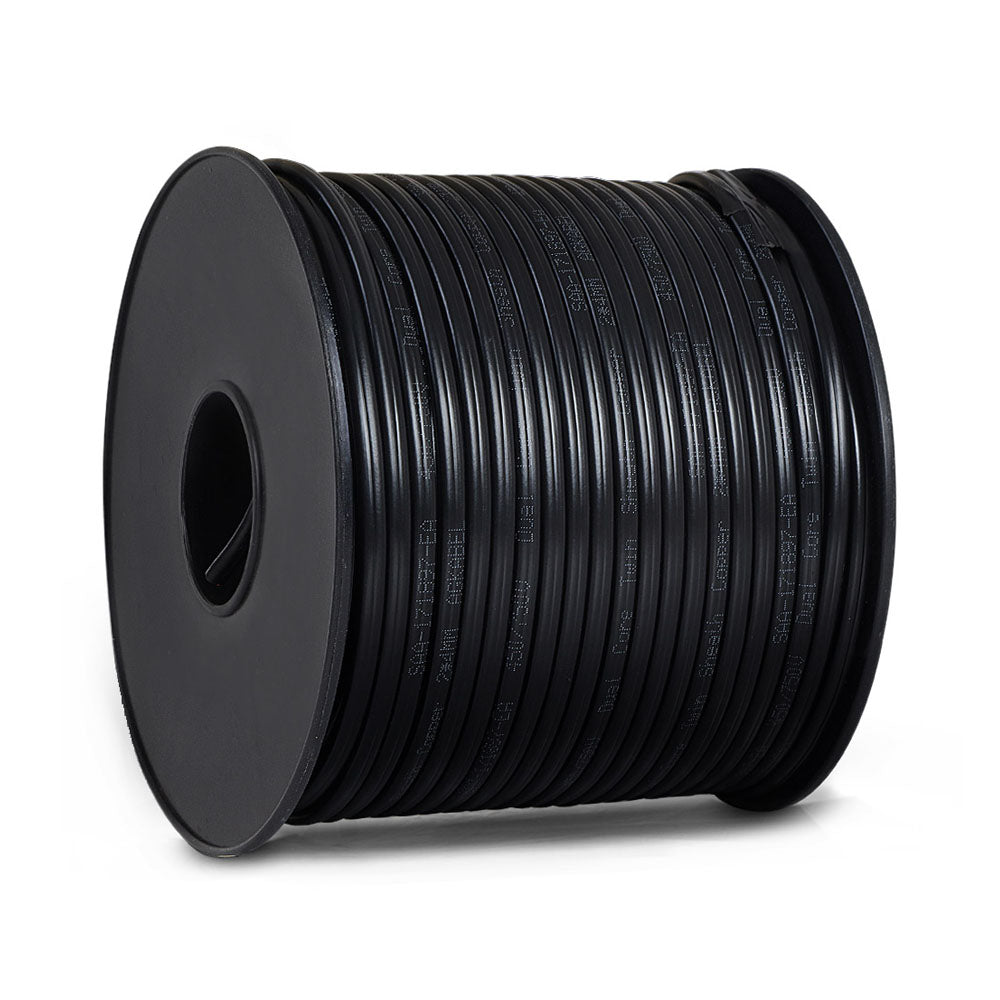

Twin Core Wire Electrical Automotive Cable 2 Sheath 450V 3MM 100M

Twin Core Wire Electrical Automotive Cable 2 Sheath 450V 3MM 100M

With its twin core design, our Twin Cable Sheath Wire is one of the best in the market. Comprising pure oxygen-free copper and a highly durable and strong reinforced PVC cover with black sheathing, our twin core sheath wire can handle any application with ease and confidence. And that can make a difference with a good project and a great one. Not least. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing any of its effective conductivity. The wire is SAA-certified and conforms to strict Australian standards.

Features:

• 3mm twin sheath automotive cable
• Oxygen-free copper core conductor
• Low eccentricity
• Reinforced PVC material
• SAA-certified
• RoHS
• Can normally work up to 450V AC/DC

Specifications:

• Conductor: Oxygen-free plain copper wire to AS/NZ 1125
• Insulation: V90 PVC to AS/NZ 3808
• Sheath: 5V90 PVC to AS/NZ 3808
• Amp rating: 16
• No. of cores: 2
• Cable Length: 100m
• Industry Equiv. : 3mm
• Strand no. diameter: 14/0.32mm
• Nominal area: 1.13mm2
• Nominal O.D.: 3.3mm x 5.5mm
• Colour: Black sheathing
• Conductor resistance <17.0/Km(20)
• Dielectric strength(kV/sec AC):2.5/60
• Unaged acceptable tensile strength =12.5Mpa
• Unaged acceptable ultimate elongation =30%

Package Content:

• 1 x Twin core cable
• 1 x Wire spool
