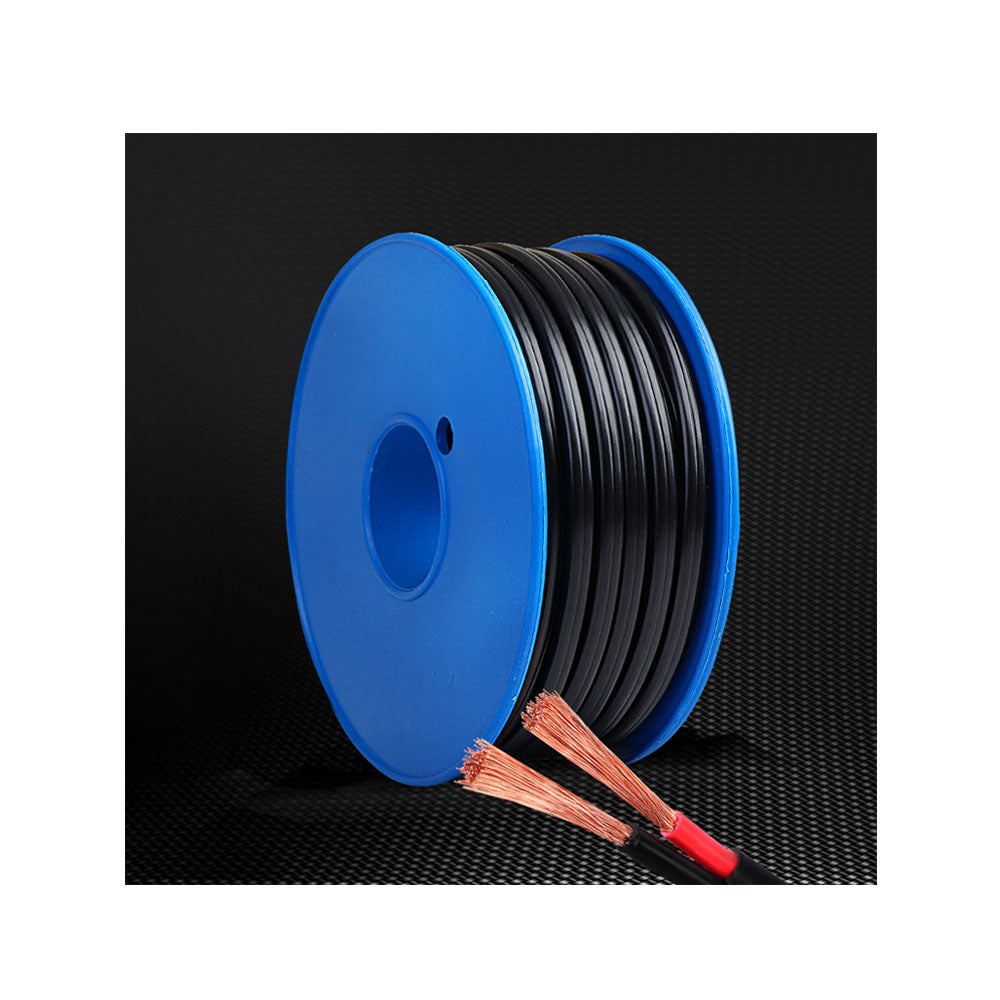

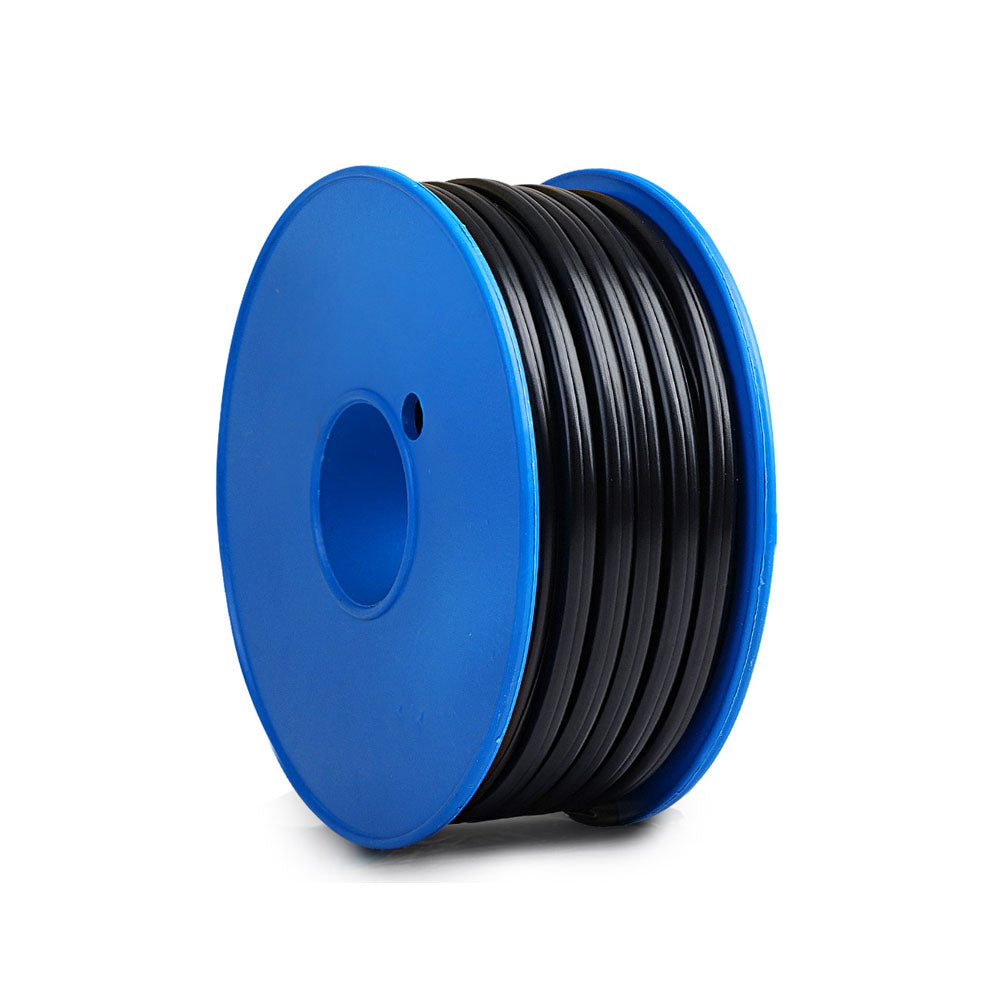

Twin Core Wire Electrical Automotive Cable 2 Sheath 450V3MM 30M

Cable Sheath Automotive Wire - 3MM

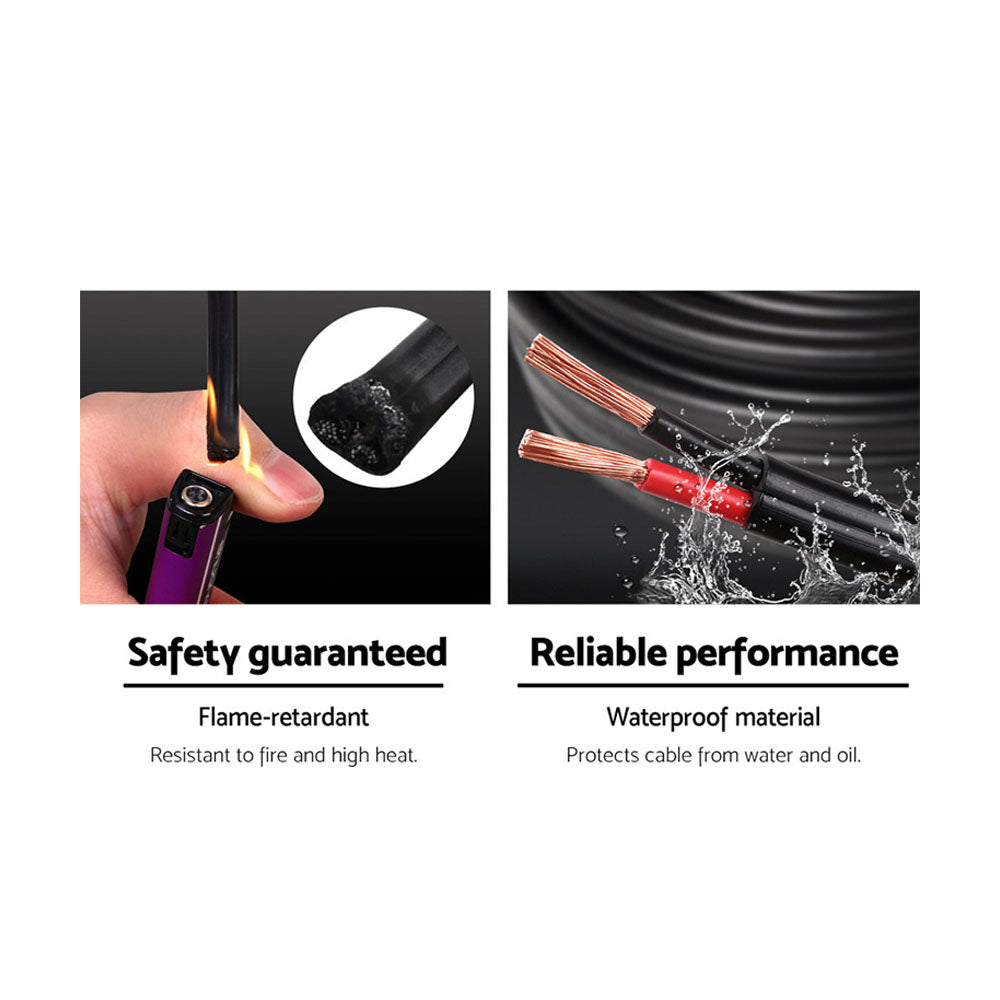

Our 3MM twin sheath automotive cable pure features a oxygen-free copper wire and reinforced PVC cover with black sheathing. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing conductivity. It is designed to meet Australian standards and is SAA-certified.

Features:

• 3MM twin sheath automotive cable
• Oxygen-free copper core conductor
• Low eccentricity * Reinforced PVC material
• SAA-certified* RoHS
• Can normally work up to 450V AC/DC

Specifications:

• Conductor: Oxygen-free plain copper wire to AS/NZ 1125
• Insulation: V90 PVC to AS/NZ 3808 * Sheath: 5V90 PVC to AS/NZ 3808
• Amp rating: 16 * No. of cores: 2 * Cable Length: 30m

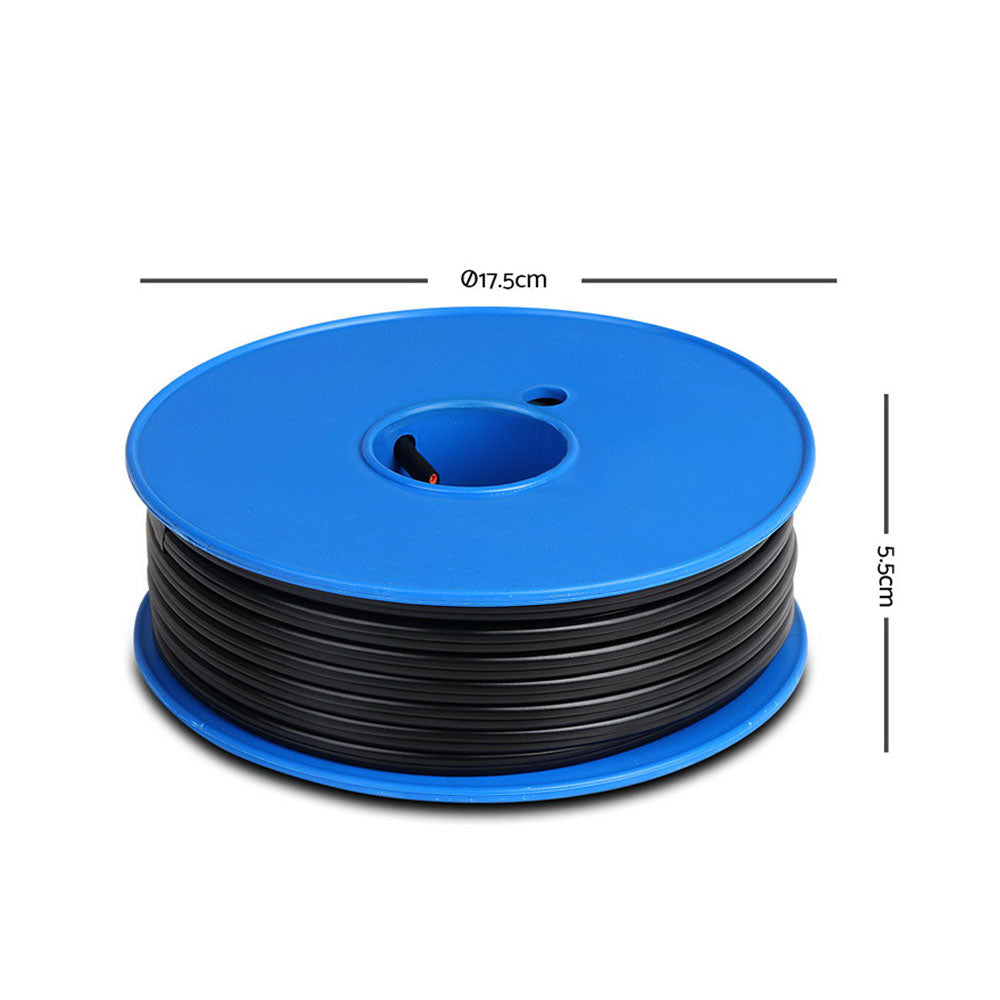

• Cable diameter: 3mm
• Strand no. diameter: 14/0.32mm * Nominal area: 1.13mm2
• Nominal O.D.: 3.3mm x 5.5mm* Colour: Black sheathing * Conductor resistance <17.0O/Km(20?)
• Dielectric strength(kV/sec AC):2.5/60
• Unaged acceptable tensile strength = 12.5Mpa
• Unaged acceptable ultimate elongation =130%

Package Content:

• 1 x Twin Core Cable
• 1 x Cable Spool
