Twin Core Wire Electrical Automotive Cable 2 Sheath 450V 4MM 30M

Cable Sheath Automotive Wire - 4MM

Our 4MM twin sheath automotive cable pure features a oxygen-free copper wire and reinforced PVC cover with black sheathing. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing conductivity. It is designed to meet Australian standards and is SAA-certified.

Features:

• 4MM twin sheath automotive cable

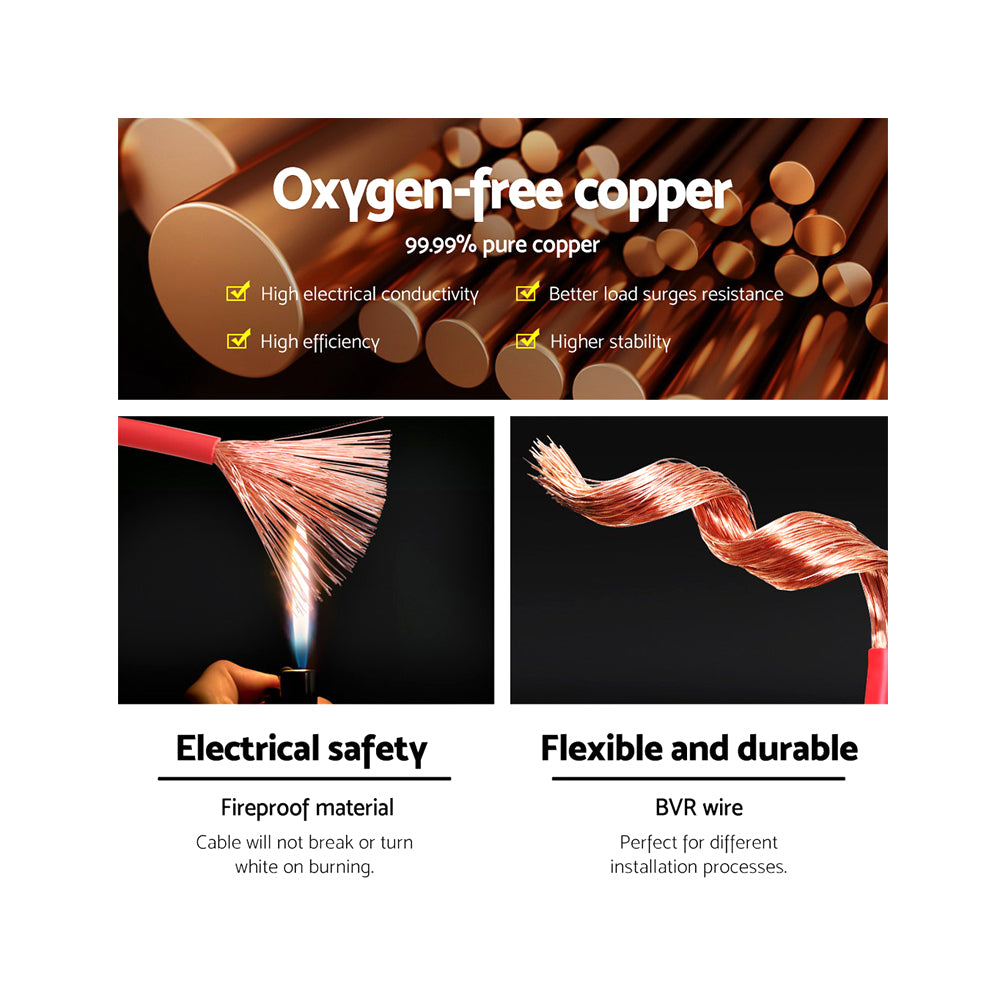

• Oxygen-free copper core conductor
• Low eccentricity
• Reinforced PVC material
• SAA-certified
• RoHS
• Can normally work up to 450V AC/DC

Specifications:

• Conductor: Oxygen-free plain copper wire to AS/NZ 1125
• Insulation: V90 PVC to AS/NZ 3808
• Sheath: 5V90 PVC to AS/NZ 3808
• Amp rating: 22
• No. of cores: 2
• Cable Length: 30m
• Cable diameter: 4mm
• Strand no. diameter: 23/0.32mm
• Nominal area: 1.84mm2
• Nominal O.D.: 3.8mm x 6.3mm
• Colour: Black sheathing
• Conductor resistance <10.1O/Km(20?)
• Dielectric strength(kV/sec AC):2.5/60
• Unaged acceptable tensile strength = 12.5MpaUnaged acceptable ultimate elongation =130%

Package Content:

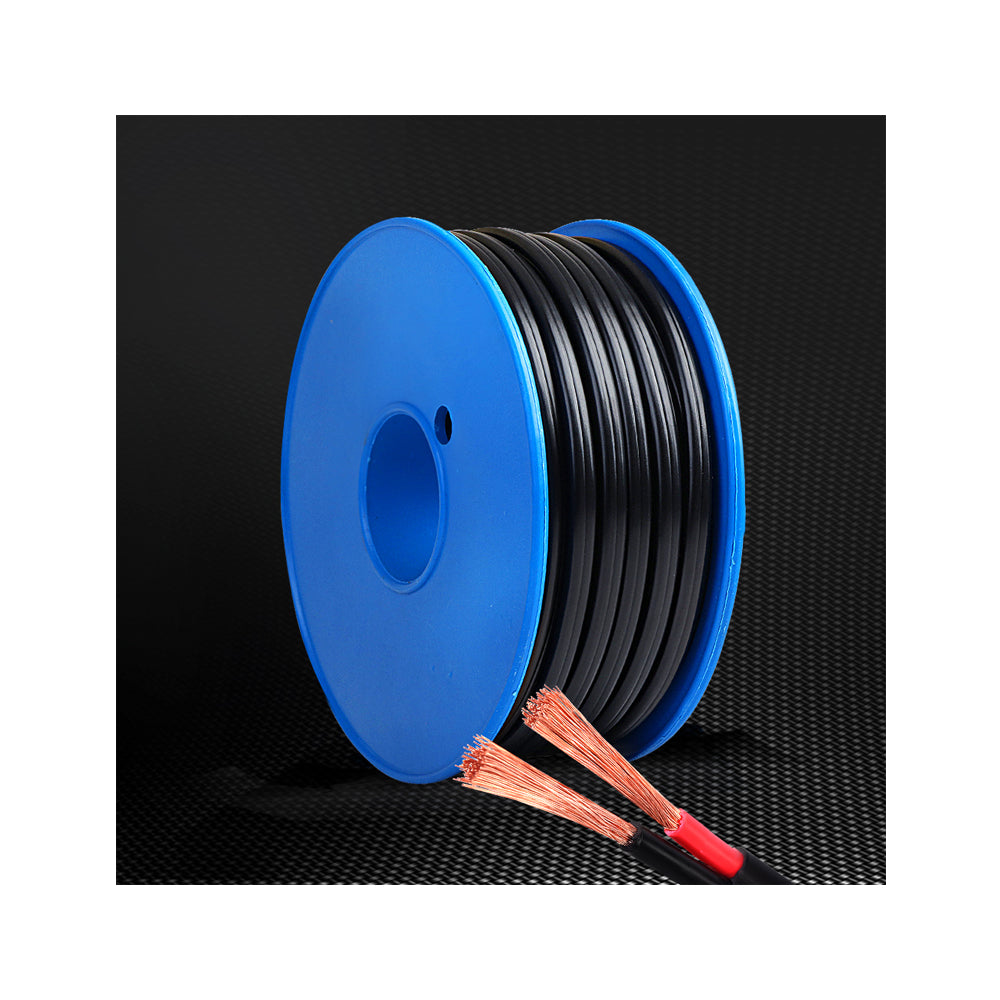

• 1 x Twin Core Cable
• 1 x Cable Spool
