7/8"Left Hand Switch Block Lights Horn Indicators For Yamaha DT 250 IT TT XT 600 WR
7/8"Left Hand Switch Block Lights Horn Indicators For Yamaha DT 250 IT TT XT 600 WR
Sale price$47.99
Regular price$52.79 (/)
Description

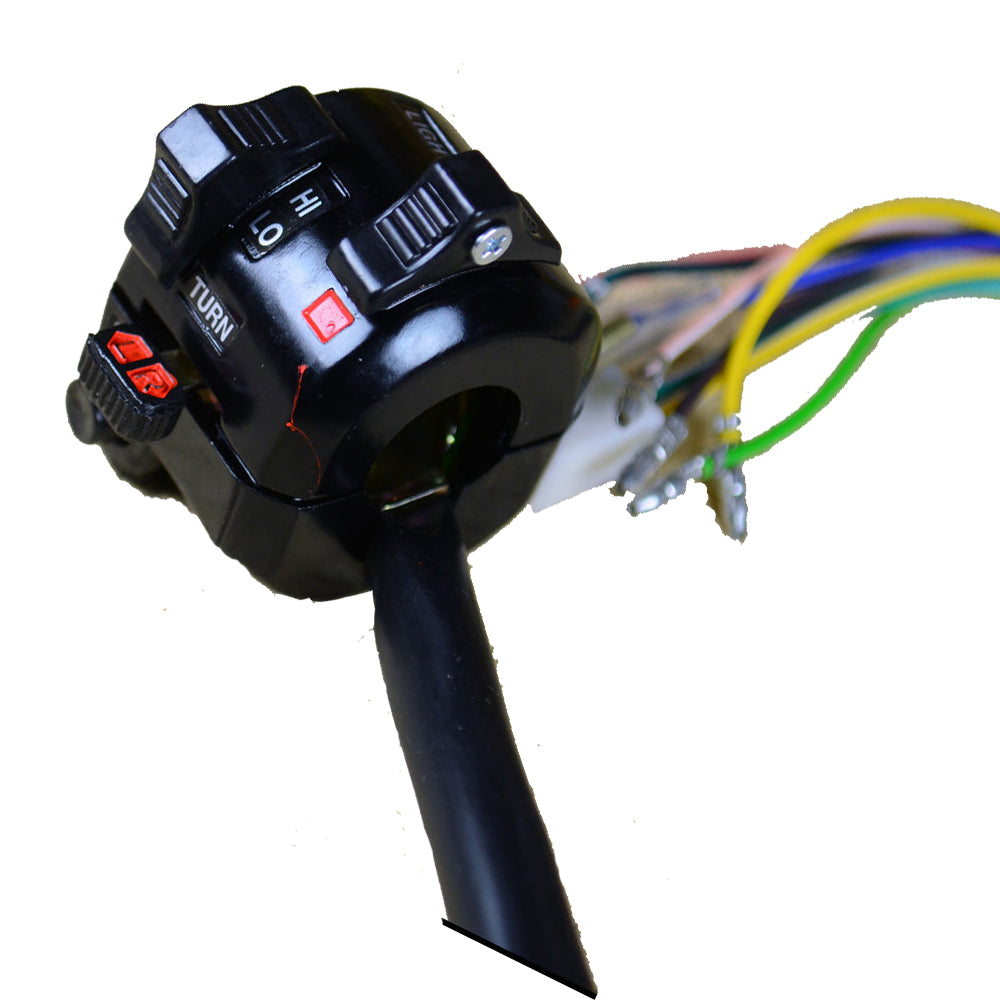

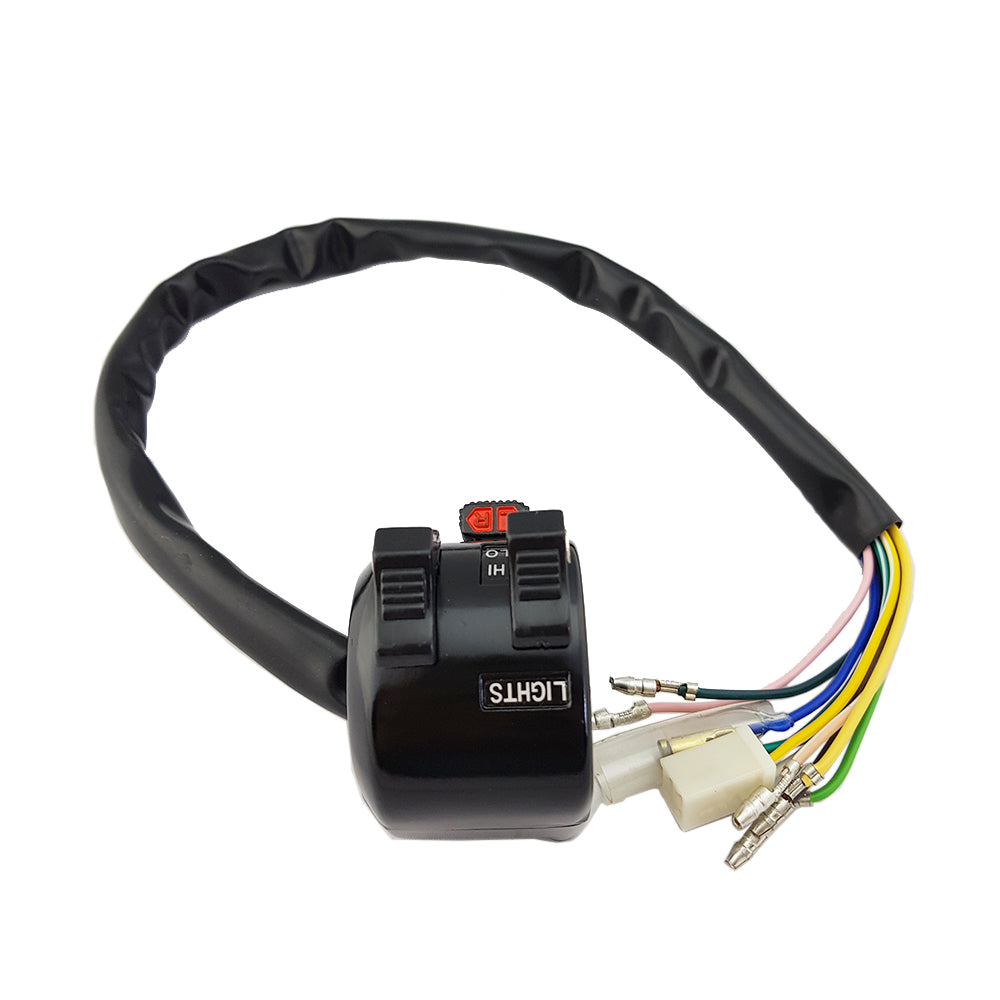

New 7/8" Handlebar Left Hand Switch Assembly Block Aftermarket
Description:
- Condition: 100% Brand New
- Lefe hand combination switch block
- Material:Metal body plastic coating on outside powder coated.
- Color: As picture shows
- For 12 v bikes with standard handle bar 7/8" (22mm)
Functions:
- Headlight On/Off
- High beam/low beam
- Park light switch
- Indicator Left/Right
- Horn
Pack including wiring diagram:
- Yellow/White - Power to H/lamp ON/OFF
- Green - Low Beam
- Yellow - High Beam
- Dark Blue - Parker Lamp /Dash Lamps
- Brown / White - Power for flasher Relay
- Brown - L/H Flasher
- Dark Green - R/H Flasher
- Pink - Horn
- White to Green/White - H/Lamp Switch Off
- White to Green/Red - H/Lamp Switch On
Features:
- Aftermarket early yamaha models left hand switch block assembly cluster
Package list:
- 1 pcs switch assembly
- 1 Installation Guide
Note:
- Despite every effort to provide accurate images of each product's colour, actual colours may vary slightly, due to different device screen settings, the lighting in the installation location, slight differences in product finishes over time and other factors. We will not accept responsibility for any colour differences that are not factory faults.
- Parts compatibility given is a guide only. We are not liabel for misapplication. Please check compare with your old part for fitment to your bike or check with your mechanic before purchasing.
- International customers: please be aware that your country's customs may charge you an import duty or tax on this item upon delivery. Please refer to your relevant authorities for more information.
Additional Information
| SKU | DS003.CS2 |
| Barcode | 9334437003817 |
| Brand | Mcs |
| Shipping Dimensions | 13.0W / 20.0L / 7.5H (cm) |
| Weight | 0.241 kg |
| Material | Metal Body Plastic Coating On Outside Powder Coated. |
| Colour | Black |
Fitment
New 7/8" Handlebar Left Hand Switch Assembly Block Aftermarket
Description:
- Condition: 100% Brand New
- Lefe hand combination switch block
- Material:Metal body plastic coating on outside powder coated.
- Color: As picture shows
- For 12 v bikes with standard handle bar 7/8" (22mm)
Functions:
- Headlight On/Off
- High beam/low beam
- Park light switch
- Indicator Left/Right
- Horn
Pack including wiring diagram:
- Yellow/White - Power to H/lamp ON/OFF
- Green - Low Beam
- Yellow - High Beam
- Dark Blue - Parker Lamp /Dash Lamps
- Brown / White - Power for flasher Relay
- Brown - L/H Flasher
- Dark Green - R/H Flasher
- Pink - Horn
- White to Green/White - H/Lamp Switch Off
- White to Green/Red - H/Lamp Switch On
Features:
- Aftermarket early yamaha models left hand switch block assembly cluster
Package list:
- 1 pcs switch assembly
- 1 Installation Guide
Note:
- Despite every effort to provide accurate images of each product's colour, actual colours may vary slightly, due to different device screen settings, the lighting in the installation location, slight differences in product finishes over time and other factors. We will not accept responsibility for any colour differences that are not factory faults.
- Parts compatibility given is a guide only. We are not liabel for misapplication. Please check compare with your old part for fitment to your bike or check with your mechanic before purchasing.
- International customers: please be aware that your country's customs may charge you an import duty or tax on this item upon delivery. Please refer to your relevant authorities for more information.
| SKU | DS003.CS2 |
| Barcode | 9334437003817 |
| Brand | Mcs |
| Shipping Dimensions | 13.0W / 20.0L / 7.5H (cm) |
| Weight | 0.241 kg |
| Material | Metal Body Plastic Coating On Outside Powder Coated. |
| Colour | Black |
